PV-Integrated Microgrid Energy Storage Solution

Solution introduction:

In remote mountainous areas, islands, and other regions far from cities, there remain unserved or underserved "power gaps" with limited or unreliable grid access. Due to the high cost of extending traditional grid power, these areas often leverage local renewable resources, combined with diesel generators and distributed PV generation, coupled with energy storage systems. This integrated approach makes smart microgrids a rational and effective solution to ensure stable electricity supply in such locations.

Solution Advantages ：

1. Independent power supply：Independent Power Supply in Off-Grid Areas: When integrated with energy storage, the system can operate independently in regions without grid coverage, ensuring a stable power supply for loads.

2. Cost optimization：Optimized Diesel Generator Operation: Prevents generators from running at no-load conditions, reducing fuel consumption and lowering power generation costs.

3. Consumption improvement：Renewable Energy Grid Integration: Facilitates the connection and utilization of renewable energy sources, increasing their consumption rate.

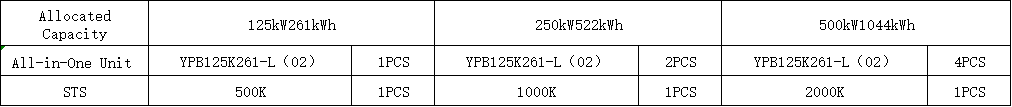

Optional configuration：

Grid-Connected/Off-Grid Switching Device Optional Capacities: 500kVA, 1000kVA, 2000kVA. The combined load and energy storage power must not exceed the selected capacity.

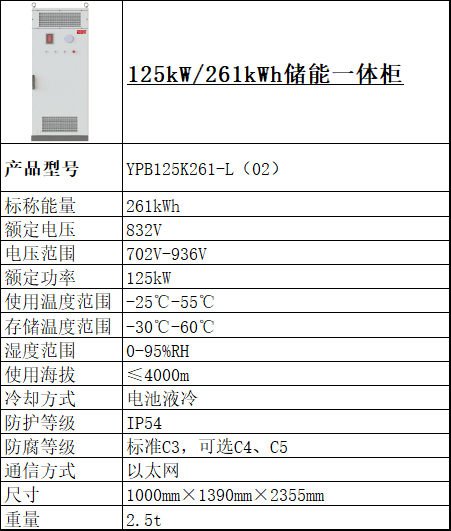

Equipment Information：
